Mechanical exoskeletons may one day reduce effort, injury risks for farmers

Researchers are looking to test the technology on farmers doing their daily tasks

Reading Time: 5 minutes

Glacier FarmMedia – Farming is a real pain in the back. But a bolt-on solution is on the way.

Years of prolonged bending, lifting and shovelling contributes to back pain and is typical of many tasks in agriculture.

“We know that farmers get very high rates of back injury. Even higher than in some other areas of heavy industry and certainly higher than some kinds of desk-based professions,” said Catherine Trask, Canada Research Chair in ergonomics and musculoskeletal health at the University of Saskatchewan.

According to the Canadian Census of Agriculture the rate of back-related injuries continues to rise as farmers age.

Why it matters: As the farming population ages, it becomes increasingly important to find the means to help them stay healthy longer.

Trask is a lead researcher conducting an 18-month ergonomic evaluation of passive exoskeletons being used in manufacturing and heavy industry for use in agriculture.

Until now, she said farmers have largely been suffering in silence and little research has been done on the suitability of exoskeleton use in agriculture.

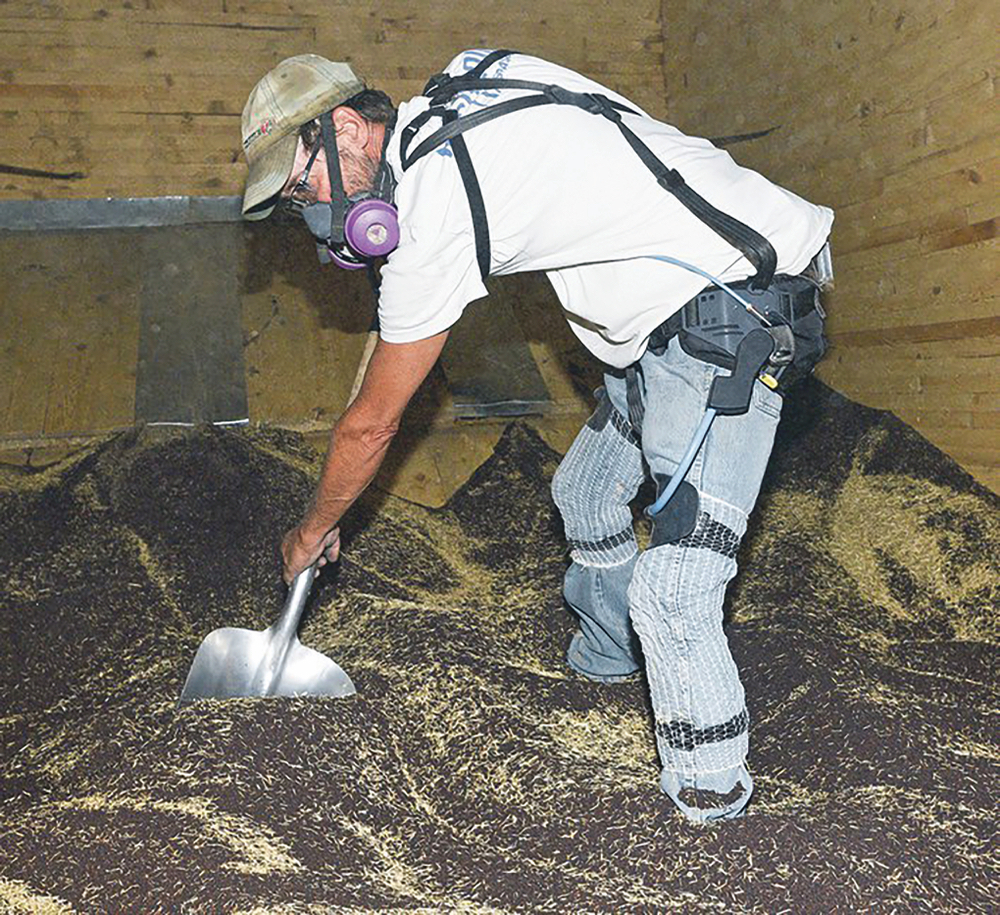

Swan said the exoskeleton proved its benefits while shovelling canola in the bin. photo: William DeKay

The researchers are determining how the exoskeletons can reduce postural and muscular load while performing manual farm tasks. Also, the user’s experiences and perceptions, including potential barriers that might prevent some from using the exoskeleton.

It’s a wearable device, which Trask calls a passive lifting structure.

“If there was a farmer who was looking to avoid back pain or to avoid a recurrence of back pain, this might be something that could come up on their radar. It’s the kind of thing that could be useful,” she said.

Several models are commercially available. Less complicated, less expensive units don’t require a power source and sell for about $1,000. They provide a little bit of extra lift when someone is extending up out of a squatting position.

More expensive models have a built-in battery pack and motorized features, which cost up to $6,000.

“If you bend down to pick something off the ground it supports your back and your body a little bit more during the bend and then also as you lift and pick (up) that object, it provides a little more support,” she said.

The researchers are inviting 18 volunteer farmers over the age of 18 to take part.

“We’re looking for all kinds of commodities and really trying to get a range of tasks. We’re measuring throughout the 2019 growing season and we’re looking for folks involved in grain production, oilseeds, pulses but also ranching. So far we’ve contacted folks that are involved with the sheep as well as beef, but we’d also love to hear from folks that work with poultry or dairy. Garden production is also on our list because there’s a lot of bending, stooping, lifting, kind of tasks involved in cultivation,” she said.

During evaluations, researchers schedule a day with the producer to wear the exoskeleton depending on the tasks he or she is doing.

“If someone were driving a sprayer all day or operating combine all day, that would not be the kind of thing we’re looking for or suitable for the exoskeleton,” she said.

Shovelling grain or doing equipment repairs are the kind of movements that puts a lot of strain on the back.

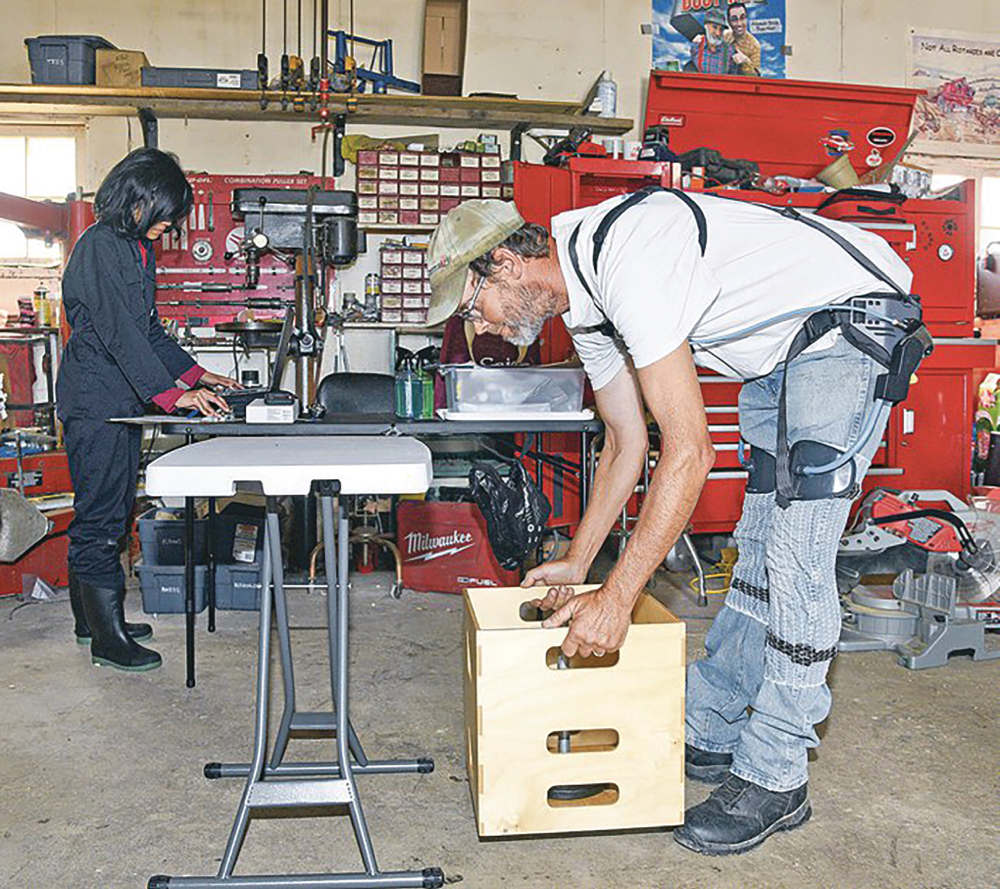

Researchers are just as interested in what farmers have to say about wearing one on the farm. photo: William DeKay

Besides measuring heart rate to determine exertion during a task, each exoskeleton is equipped with wearable sensors that specifically monitor the activity of the muscles.

“We can tell for the muscles along the spine in particular how hard are these muscles working when people are using the exoskeleton compared to when they’re not using it.

“We also have what’s called a posture sensor. It’s kind of like a Fitbit, but for different parts of the body. It tracks the movement of the ankles, the knees, the hips, the trunk. It shows us how fast people are moving, how far they’re bending and how many bends they’re making during a minute or during an hour. All of these three sources of data give us a quantified idea of the kind of biomechanics of the task,” she said.

Researchers are just as interested in what farmers have to say about wearing one on the farm.

“Much to my surprise, the experience with the exoskeleton was the ability to rep longer with more weight. I would say 25 per cent more range without the fatigue,” said Ron Swan who farms with John and Kent Harrington of Glenside, Sask., and who volunteered to wear one for a few hours Aug. 13.

Researchers Ornwipa Thamsuwan and Abisola Omoniyi hooked up sensors with the exoskeleton and gave Swan a variety of simulated tasks in a set amount of time that involved repetitive lifting, bending and twisting with different weights.

Swan said the exoskeleton proved its benefits while shovelling canola in the bin.

“I found that without the exoskeleton, I must pause fairly frequently to let the muscles relax in the centre of my back. I realized that my legs do a lot of that back support, but I didn’t realize I was tensing those muscles up in order to support the back. The exoskeleton alleviated that effort and I could move more product faster and longer with the exoskeleton on. I pushed hard just to see what the exoskeleton would do for me and I came out quite a bit ahead of the game I think,” he said.

Added Trask, “Farming is so varied that we can see lots of different tasks in lots of different environments and also different hazards as well. The numbers will say whatever they do, but if it turns out that the exoskeleton is only practical for certain types of tasks, that’s a really valuable thing for us to know.”

After their confidential exoskeleton trial, participants are asked to complete a survey and are interviewed about the experience.

“Once they’ve gone past the prototype into a developed apparatus that would be comfortable to wear and maybe not quite as bulky, I’m sure it would become a great assist for those that need their back. As the demographic of farmers becomes older, we’re going to try and preserve those parts a lot longer so we can keep going,” said Swan.

“Eventually in the future it could definitely become a tool on the farm.”

Trask said wearing an exoskeleton may not be for everyone, but the people most motivated to overcome the learning curve probably already have experience with a musculoskeletal disorder, such as back pain or other types of joint pain.

“We hope to publish our findings and make some recommendations for farmers about what it’s useful for, what type of differences you can expect from it and then producers themselves can weigh that against the cost of the device,” she said.

To see an exoskeleton model developed by Ekso Bionics in action, watch this video on YouTube.
