More updates for John Deere’s S Series combine

Track suspension, header and tech improvements coming for 2019-model year combine

John Deere is offering an improved track suspension module as a factory-installed option for its S Series line of combines.

The company said the module is available for 2019 model-year machines, and will be available with 30- or 36-inch (76.2 or 91.4 cm) belt widths.

The new track modules see changes to the track belt tread configuration, integrated final drive and suspension cylinder, as well as tandem bogie wheels. All of which will work together to improve flotation, ride quality, transport speed and durability, according to the company’s news release.

“The new tracks have a larger contact area compared to our previous tracks, which provides significant advantages to customers,” Matt Badding, product marketing manager for John Deere Harvest Solutions, said in the release.

The new track tread design has wider and taller tread bars angled to improve traction, balance and ride comfort as well as extend tread life. And unlike previous track systems, combines equipped with the new track systems get a road travel speed of about 25 m.p.h. (40 km/h).

John Deere S Series combines will see some updates for the 2019 model year.
photo: John Deere

Up front, S Series buyers now have another header choice with the introduction of the latest in Deere’s line of flex draper headers, the 700FD HydraFlex. It features a symmetrical design with a dual V-guide belt and thicker, corrugated front edge for improved crop flow and four times longer belt life. There is also a dual position (16- and 18-inch) (40.6 and 45.7 cm) centre-feed drum for better harvesting versatility and better processing of bushy crops like canola. An 18-inch (45.7 cm) auger improves feeding and should improve performance during tough conditions.

“To improve ground sensing on uneven terrain and to automatically adjust header position accordingly, we’ve added a fourth sensor to the automatic header height control option on our 35-, 40- and 45-foot (10.67, 12.19 and 13.71 m) models,” Badding added.

Lastly, Deere has built more features into its MyOperations app. It will now allow farm managers to monitor combine operations and adjust settings, such as concave clearance, rotor, fan speed and chaffer and sieve clearance, remotely. With the ability of managers to better keep an eye on machines operated by inexperienced employees, it should help them do a better job.

“From their mobile device, customers can make changes to different settings as crop and harvesting conditions change throughout the day. Then the operator simply accepts the changes on the in-cab display,” Badding said.

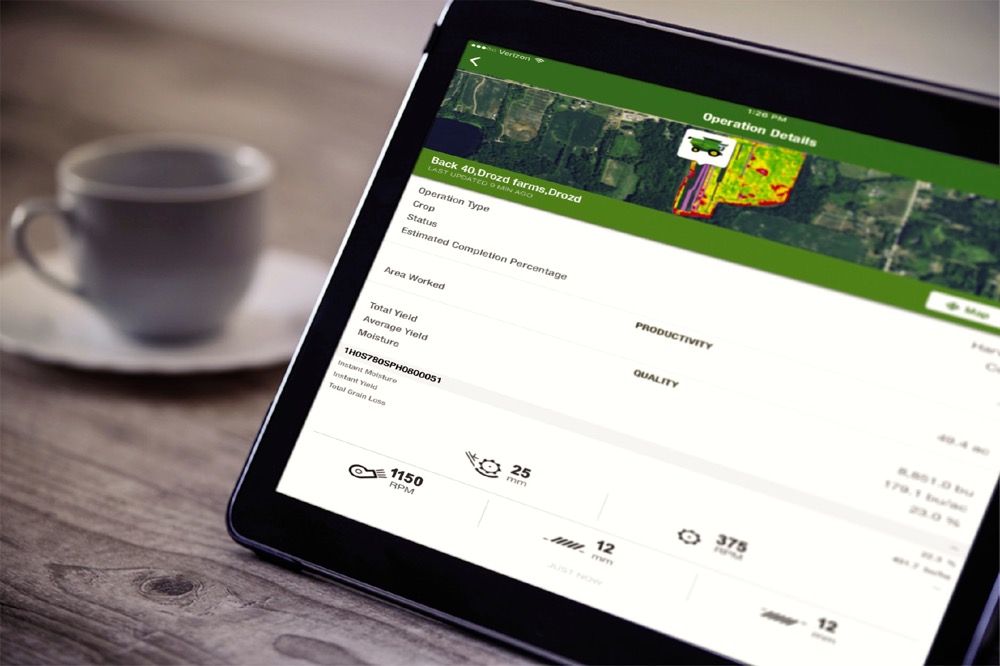

Updated features on Deere’s MyOperations app will make it possible for managers to monitor combine performance and make adjustments remotely.
photo: John Deere
